alloy wheel repair machine manufacturer

Date: Jul 26, 2019

Shanghai Gubot automobile technology co.,ltd is focusing on alloy wheel repair machine manufacturer.

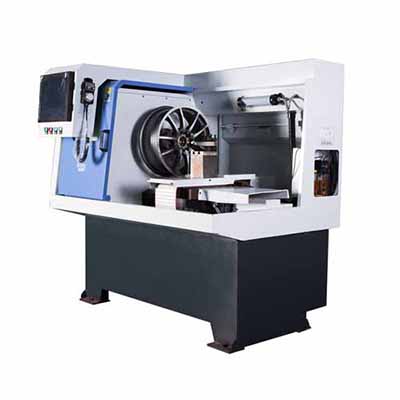

alloy wheel repair machine manufacturer

The latest technology for diamond cut alloy wheels.

The fully automated Diamond Cut Alloy Wheel Repair Centre from HBC system provides you with the highest quality finish and the quickest turnaround time available

The majority of new cars come with alloy wheels as standard and the different designs available are increasing. With this growing market there is more and more demand for diamond cut wheel repairs.

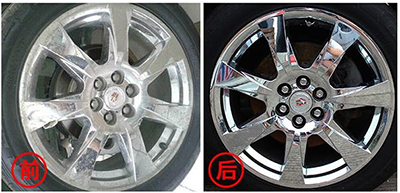

Diamond cut is an alloy wheel which has been put on a lathe and part of or the entire painted surface of the wheel machined off to leave a shiny alloy finish. A small part of the actual alloy is machined off to create this finish. It is then lacquered over to prevent corrosion.

The company have two kinds of the wheel diamond cut machine ,it’s

Specification and parameter is as below:

alloy wheel repair machine manufacturer

Items Unit Specifications Remark
Max swing over bed mm 660
Max size of alloy wheel inch 28
Range of spindle speed rpm 50-2000
Cutting feed speed mm/min 0.1-1800
Xmoving speed of X axis and Z axis mm/min 12000
X-axis moving distance mm 660
Z axis movement speed mm/min 12000
Z axis moving distance mm 800
Tool holder form - Row of knives
Tool bar size mm 25*25
Spindle length mm 360
X-axis, Z-axis motor type - servo motor
Moving track - Taiwan imported rail
main motor power KW 3
Feed motor N/m X:4  Z:4
Machine positioning accuracy mm 0.01
Machine tool positioning repeatability mm 0.01
Machine weight KG 1700
Machine size mm 2150*1280*1810
